Damage to Foreward
Frame Assemby
The bottom of the forward keel looks like it was pulled
like a 'wishbone'. The bottom view shows
this better.
Back to top
These were the peices that joined the keel ladder and
the longerons which are part of the forward frame assembly. The
wood is split, splintered and several pieces are missing.
Back to top
Where's the clasp that used to be on the left?
Back to top

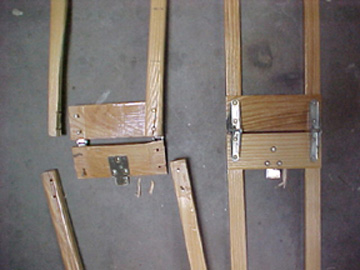

These hinges were closed and the entire frame assmbly
was held closed with bungee cords. All the hinges are damaged
beyond repair.
Back to top
These mounting points for the cross frame are now loosely
attached.
Back to top
Bottom view of the forward keel. The damage looks like
the keel stringers werer pulled like a 'wishbone'.
Back to top
None of the joints between this plate and the wood
strips are intact.
Back to top
Rivets are stripped, staples acted as initialion sites
for splits and cotter pins were sheared off. The Alaska Airlines
baggage handler looked at the pieces and the ripped bage and said:
"Those are sharp sticks of wood, no wonder
the bag ripped."
